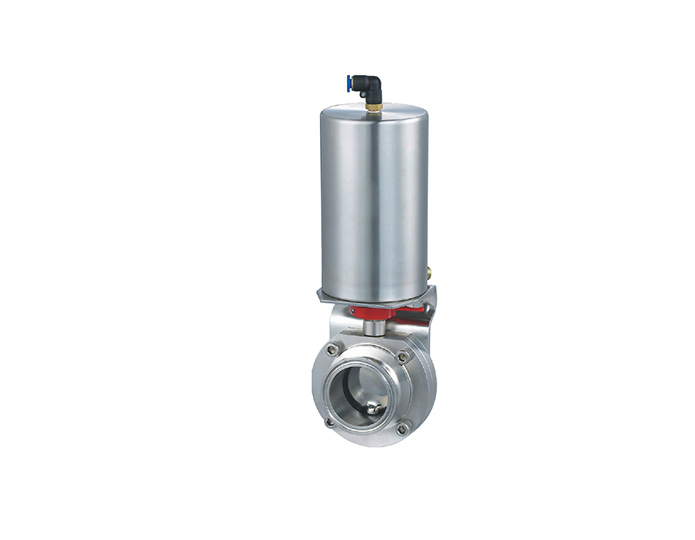

Pneumatic butterfly ball valve C-TOP
Specification: 1 "-4", DN25-DN100
◆ Material: 304/1.4301 316L/1.4404
Temperature upper limit: -30 ℃ to 130 ℃
Pressure upper limit: Vacuum to 10 bar
◆ Low operating torque
◆ Excretible (washable CIP) (option)
Regardless of the flow direction of the fluid, the handle can be installed on the side valve body.
Regardless of the connection method, the valve body can be replaced without changing the total length of the valve.
Control unit:
◆ Power supply: DC 24V ± 10% single acting (standard), double acting (optional)
◆ Feedback on self-tuning valve position function
◆ Supports analog signal (4-20mA) and electrical signal (DC24V) output
◆ Support AS-IBUS bus
◆ Support manual and automatic operations
Online inquiry
◆ Material: 304/1.4301 316L/1.4404
Temperature upper limit: -30 ℃ to 130 ℃
Pressure upper limit: Vacuum to 10 bar
◆ Low operating torque
◆ Excretible (washable CIP) (option)
Regardless of the flow direction of the fluid, the handle can be installed on the side valve body.
Regardless of the connection method, the valve body can be replaced without changing the total length of the valve.
Control unit:
◆ Power supply: DC 24V ± 10% single acting (standard), double acting (optional)
◆ Feedback on self-tuning valve position function
◆ Supports analog signal (4-20mA) and electrical signal (DC24V) output
◆ Support AS-IBUS bus
◆ Support manual and automatic operations
