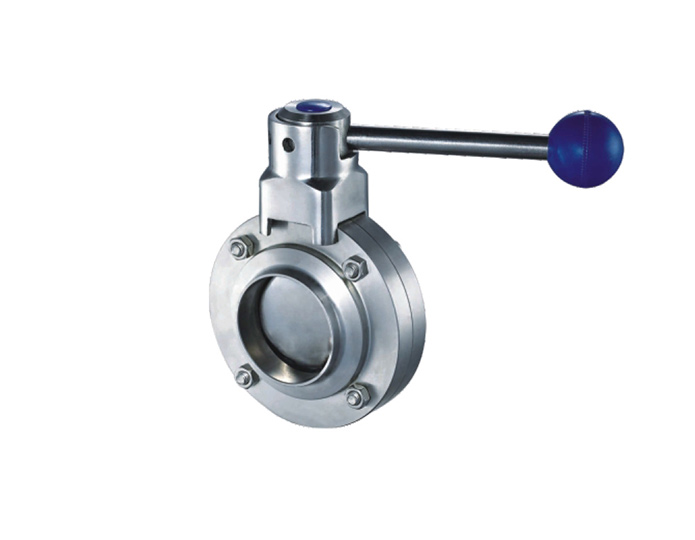

Welding butterfly valve
Butterfly valves, as an important process for separating materials, are widely used in various applications such as:
In the CIP cleaning system, separate the cleaning solution
◆ Application of flushing process
◆ Application of water source management
Partial pipeline closure to separate materials
◆ CIP/Source Management Application (Brewing)
◆ Storage tank material separation/CIP
◆ As a CIP reflux valve in the valve matrix
◆ Especially suitable for liquid and gas media without suspended solids/particles
Specification: 1 "-4", DN25-DN100
◆ Material: 1.4404/1.4301304/316L
Temperature upper limit: -10 ℃ -130 ℃
Pressure upper limit: 10bar
◆ Operation mode: Pneumatic/manual interchangeable
◆ Control box: C-TOP basic type, C-TOP+AS - | communication
◆ Sealing ring: EPDM (standard) FPM/SIL ICON/NBR, FDA177.2600
Online inquiry
In the CIP cleaning system, separate the cleaning solution
◆ Application of flushing process
◆ Application of water source management
Partial pipeline closure to separate materials
◆ CIP/Source Management Application (Brewing)
◆ Storage tank material separation/CIP
◆ As a CIP reflux valve in the valve matrix
◆ Especially suitable for liquid and gas media without suspended solids/particles
Specification: 1 "-4", DN25-DN100
◆ Material: 1.4404/1.4301304/316L
Temperature upper limit: -10 ℃ -130 ℃
Pressure upper limit: 10bar
◆ Operation mode: Pneumatic/manual interchangeable
◆ Control box: C-TOP basic type, C-TOP+AS - | communication
◆ Sealing ring: EPDM (standard) FPM/SIL ICON/NBR, FDA177.2600
